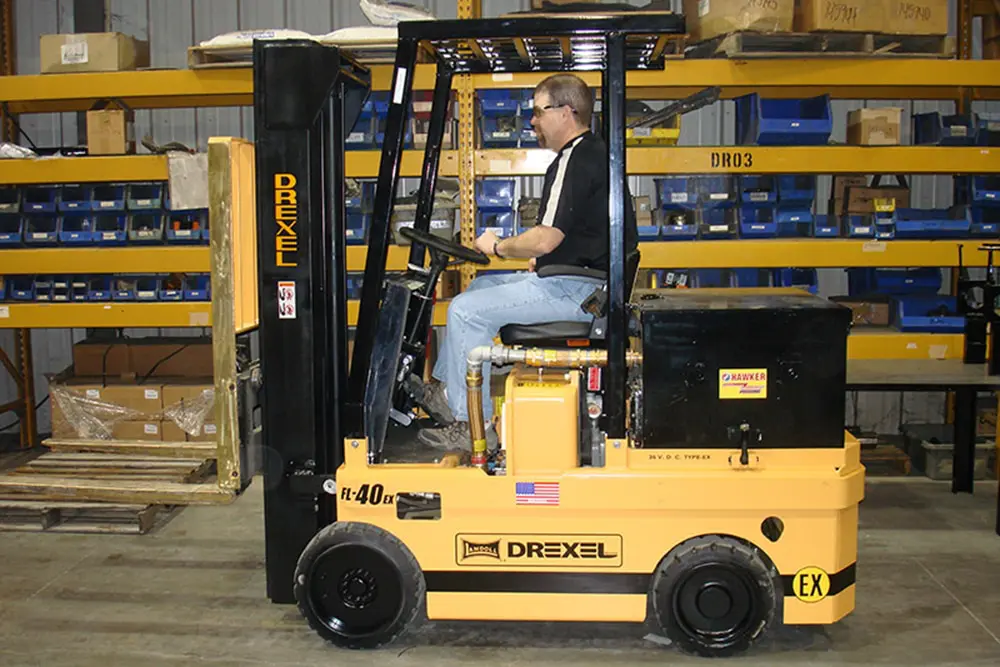

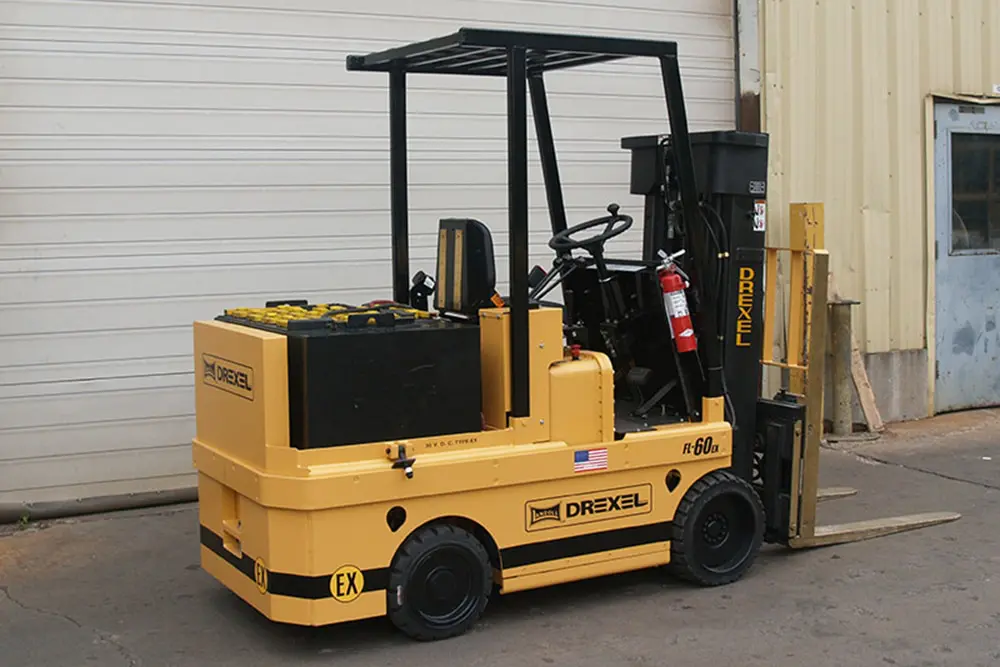

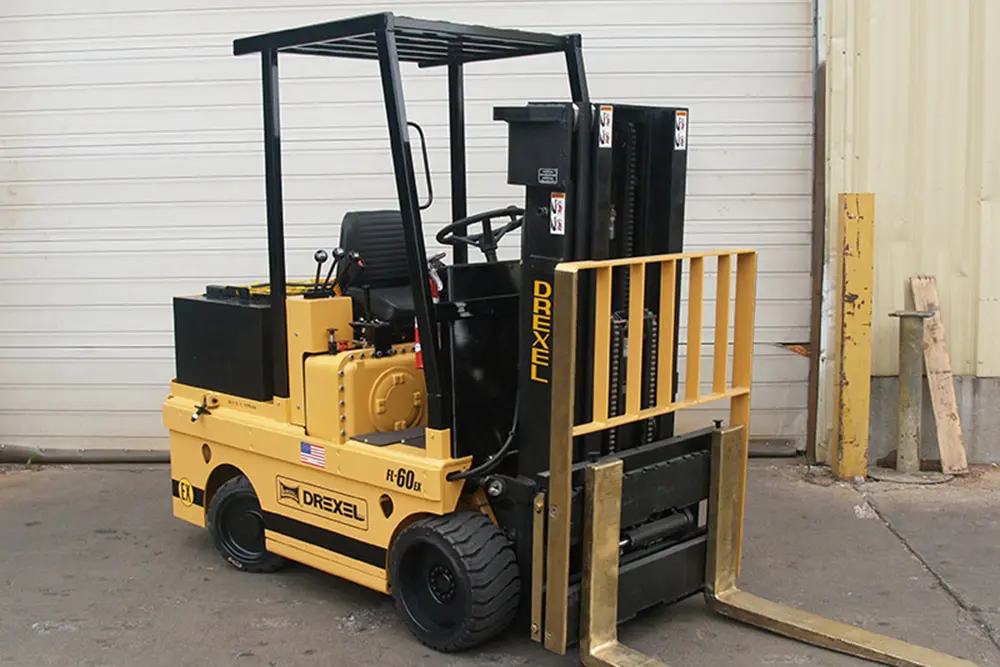

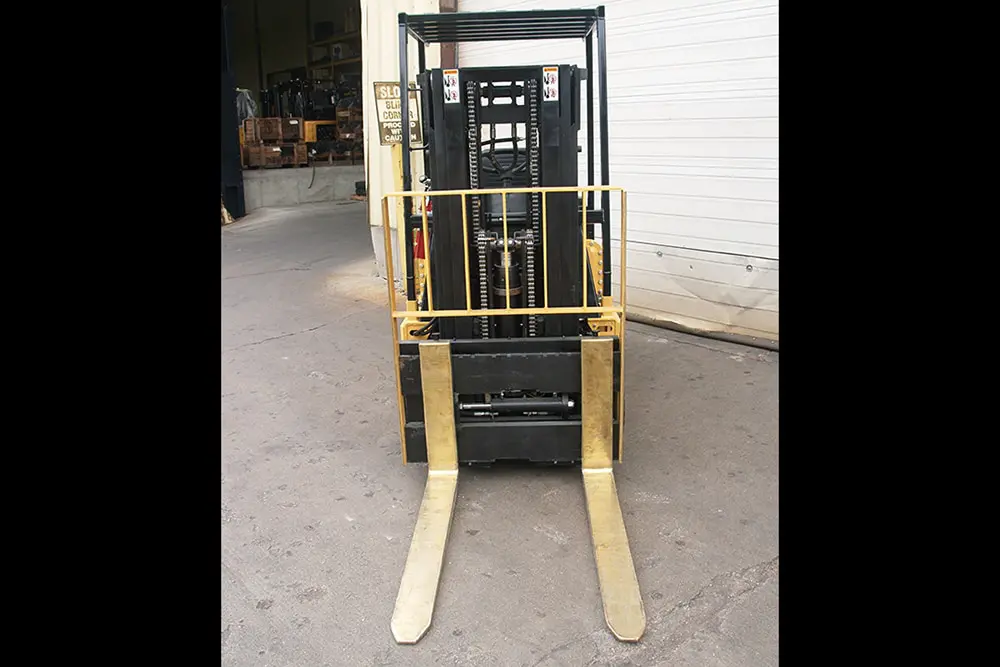

The Landoll Drexel FL40AC-EX and FL60AC-EX are explosion proof, electrically powered, front loading, 4-wheel electric forklifts with independently driven front wheel drive and rear wheel steering. The EX range is UL listed for operation in Type EX Class I, Division I, Group D and Class II, Division I, Group G flammable hazardous areas. The Capacities are available in 4,000 lbs. (1814kg) and 6,000 lbs. (2722kg) with two, three and four stage masts for lift heights to 250″ (6.35M).  AC motors and controls make the EX range efficient and easy to maintain.

36 Volt System
42 Long Brass Covered Standard Taper Forks
48 1200mm High Backrest Hour Meter
Anderson Type N 150 Amp EX Connector
Automatic Return to Neutral Overhead Guard
Battery Discharge Indicator with Lift Interrupt
Class III 36 914mm Wide Carriage
Curtis AC Traction Hydraulic Controllers
Emergency Power Disconnect Switch
Fire Extinguisher and Electric Horn
Four Wheel Configuration Front Wheel Drive
Hydrostatic Power Steering
RFI Suppressed to MIL STD 461 Class III C
Regenerative Service Brakes
Seatbelt Retractable
Spring Applied Parking Brake on Front Wheels
Static Grounded Steer Tires
FL40AC-EX FL60AC-EX
Capacity (lbs/kg) 4,000 / 1,814 6,000 / 2,722
Engine Type Electric Electric
Light Height Options Range From 114″ to 250″ Options Range From 114″ to 250″
Overall Width (in/cm) 46 / 116 46 / 116
Overall Length (in/cm) 93 / 236 93 / 236

Click Here to View Detailed Product Brochure
