Lift Heavy, Large Loads Easily

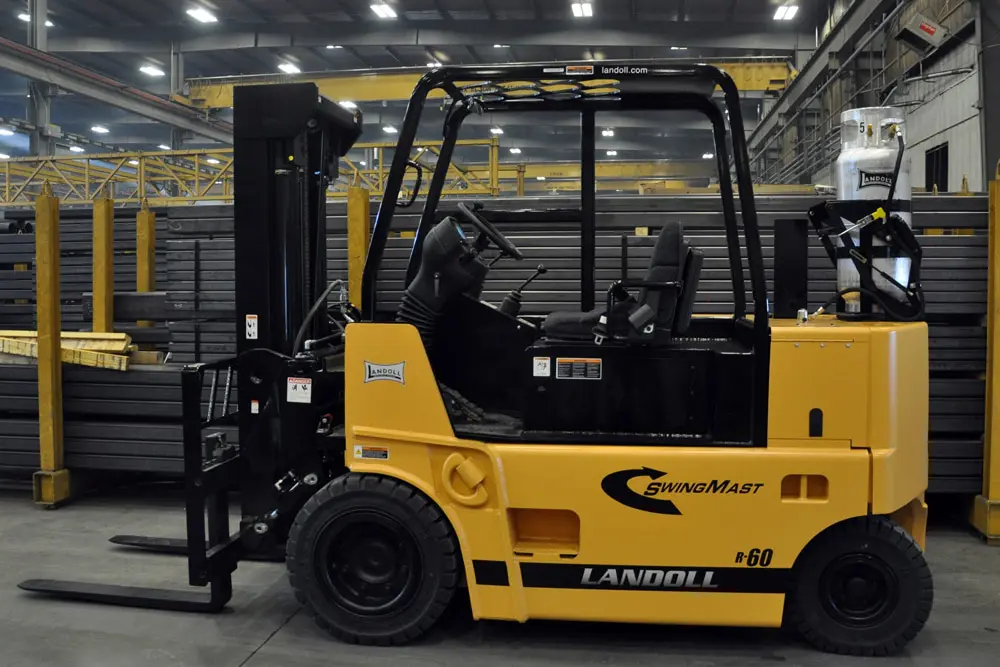

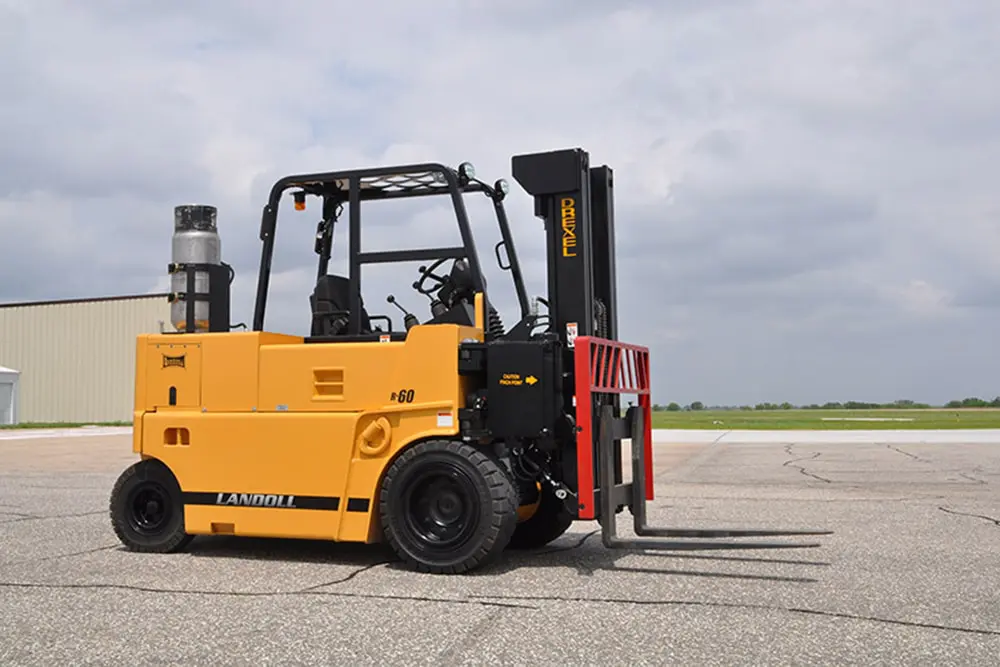

The Landoll 4-wheel Drexel R60i4 SwingMast® is an LP Gas powered, hydrostatically driven, front/side loading forklift with lift heights to 240″ (6.1M) and a lift capacity of up to 6,000 lbs. (2722kg) at 24″ (600mm) load center.

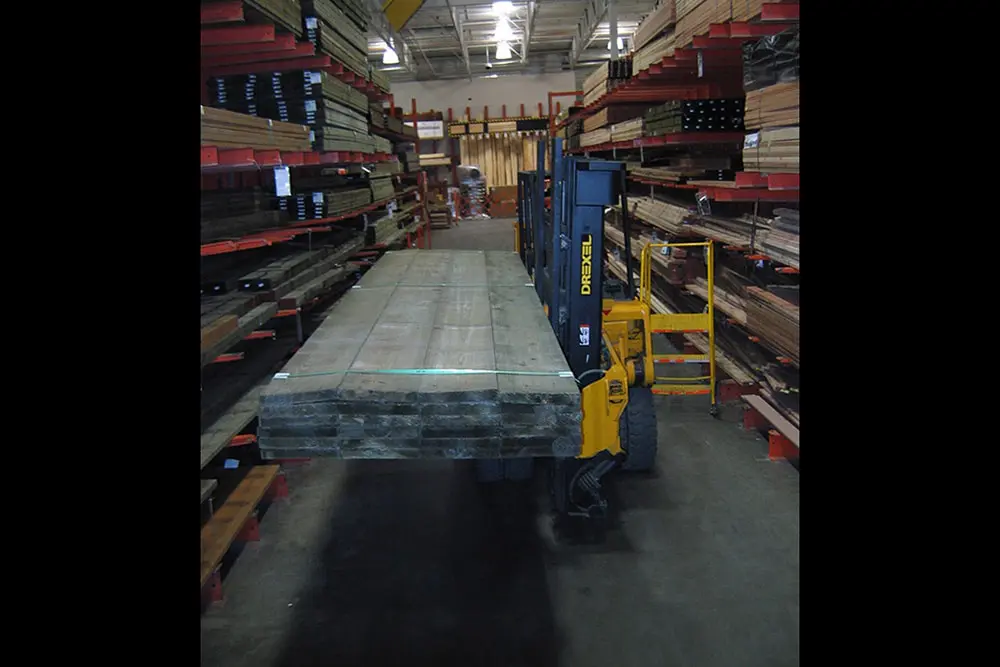

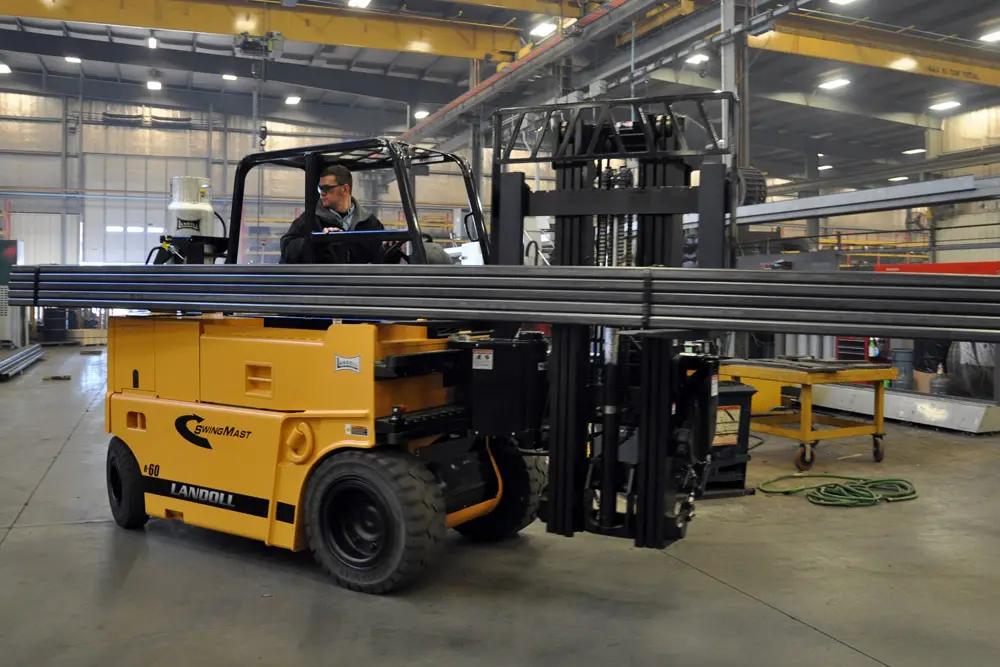

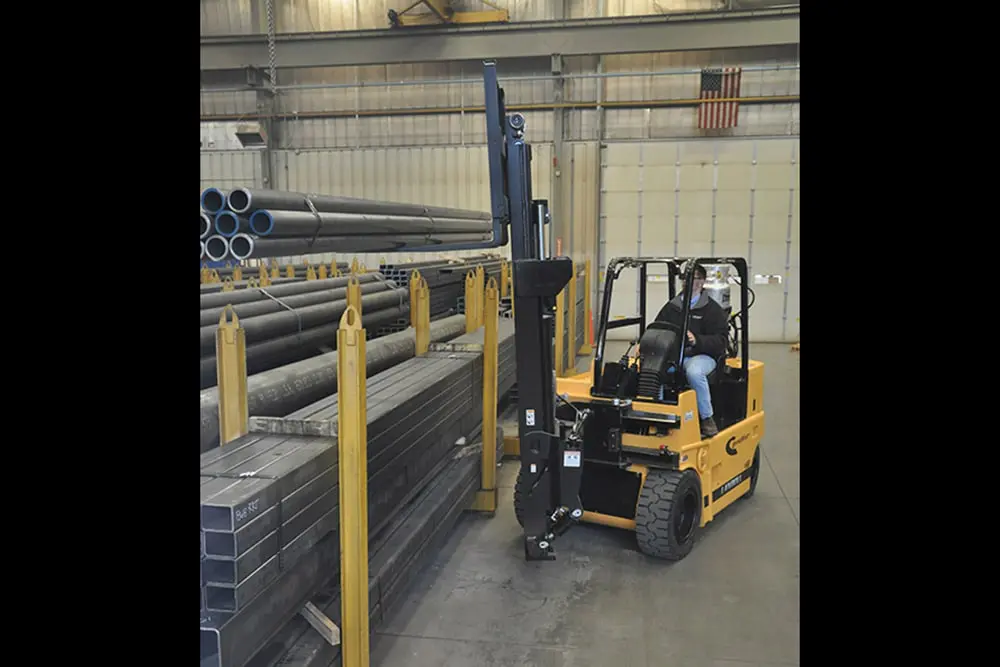

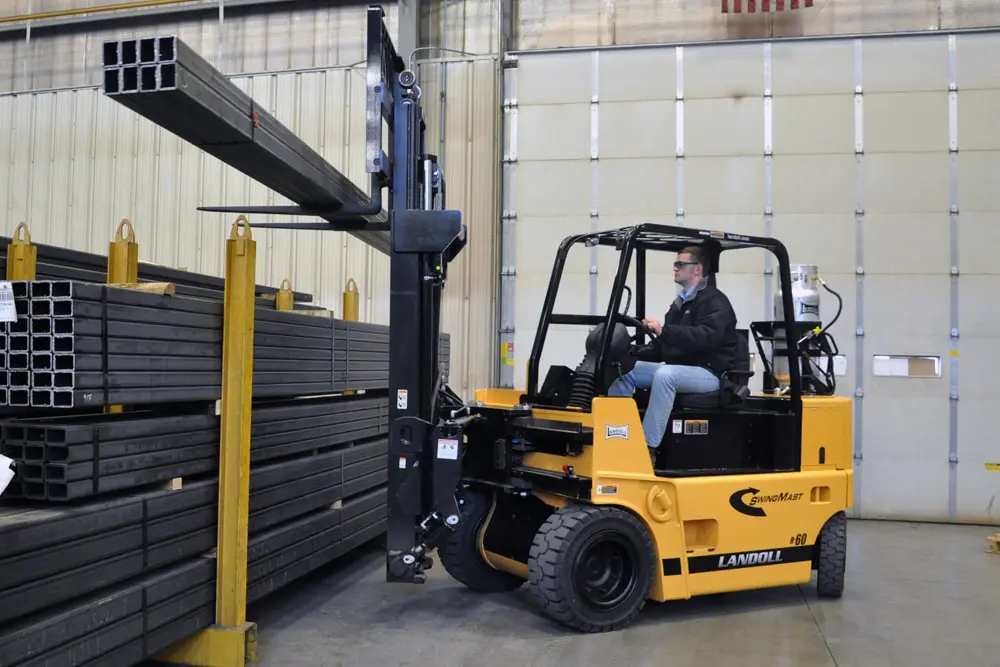

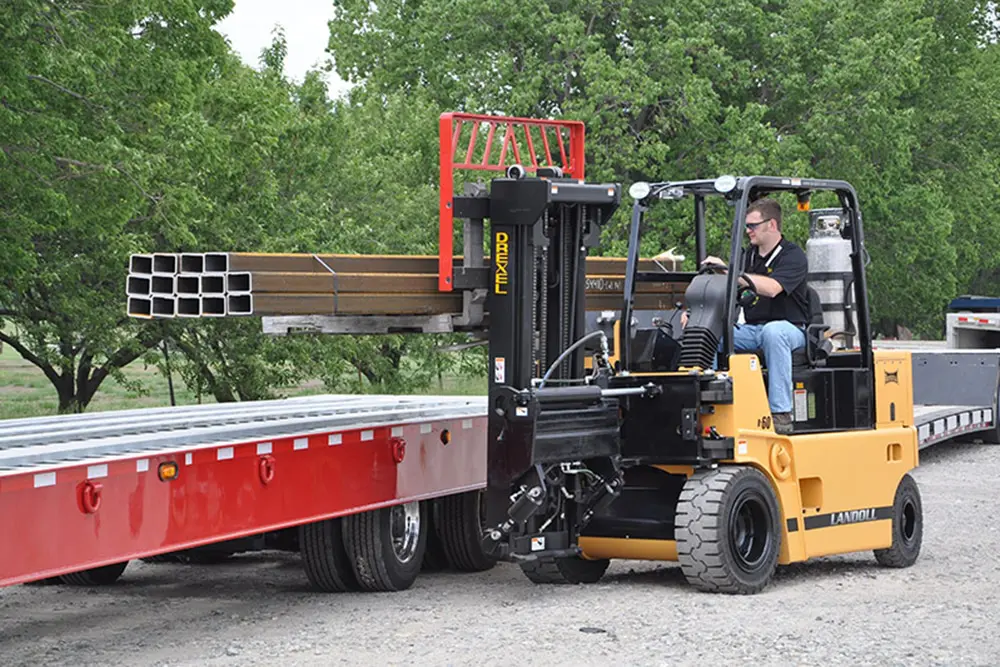

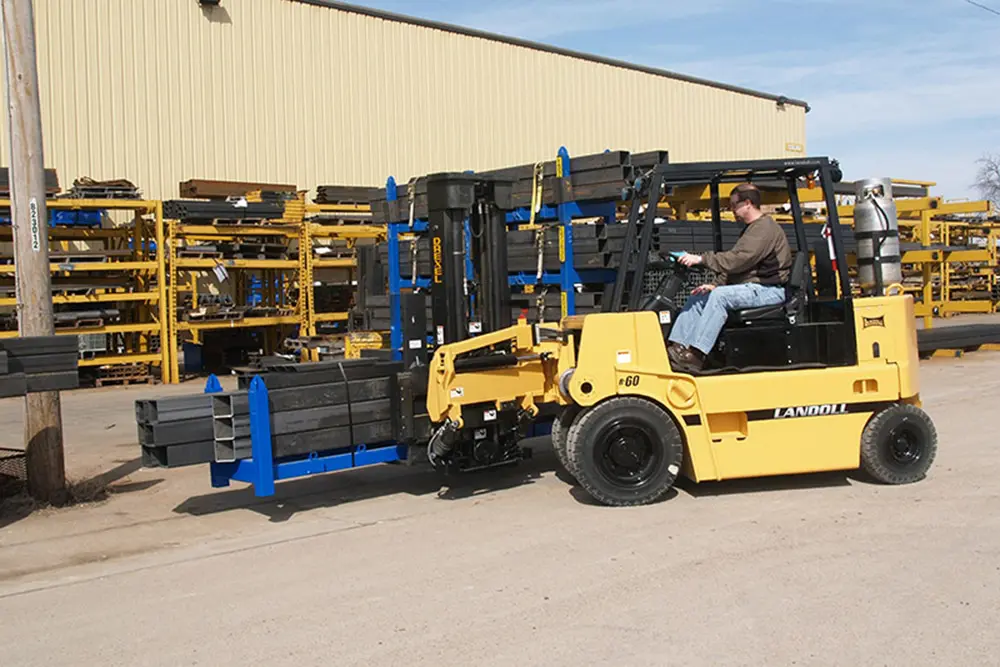

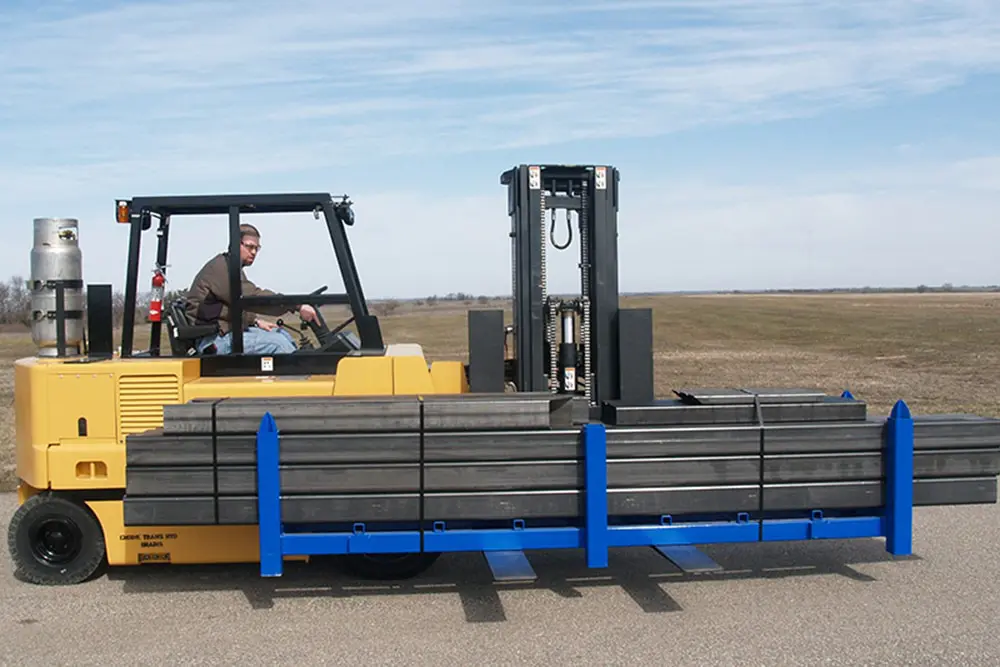

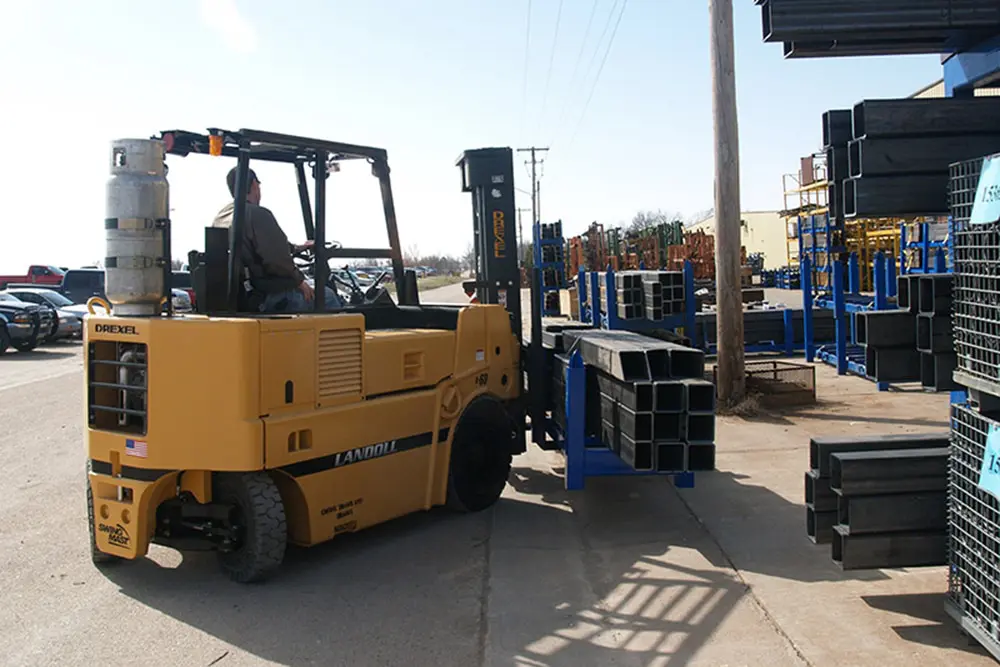

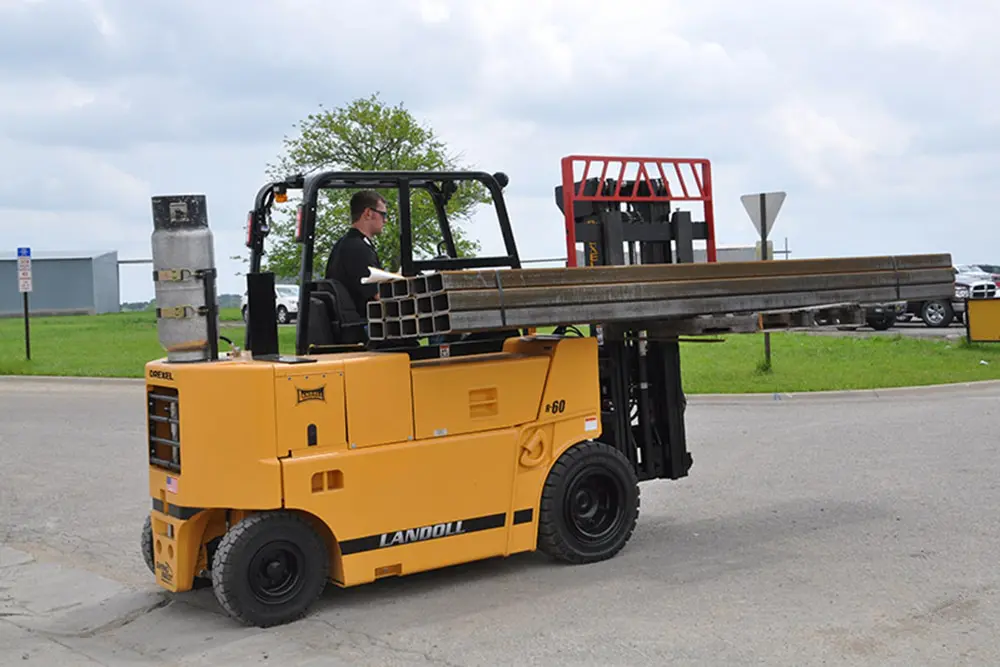

This versatile lift truck has side loading capability for long heavy loads, while maintaining front loader capability and VNA stacking ability for standard pallets. The solid pneumatic tires allow operation on any indoor or outdoor surface including gravel and dirt.

Very Narrow Aisle Capability

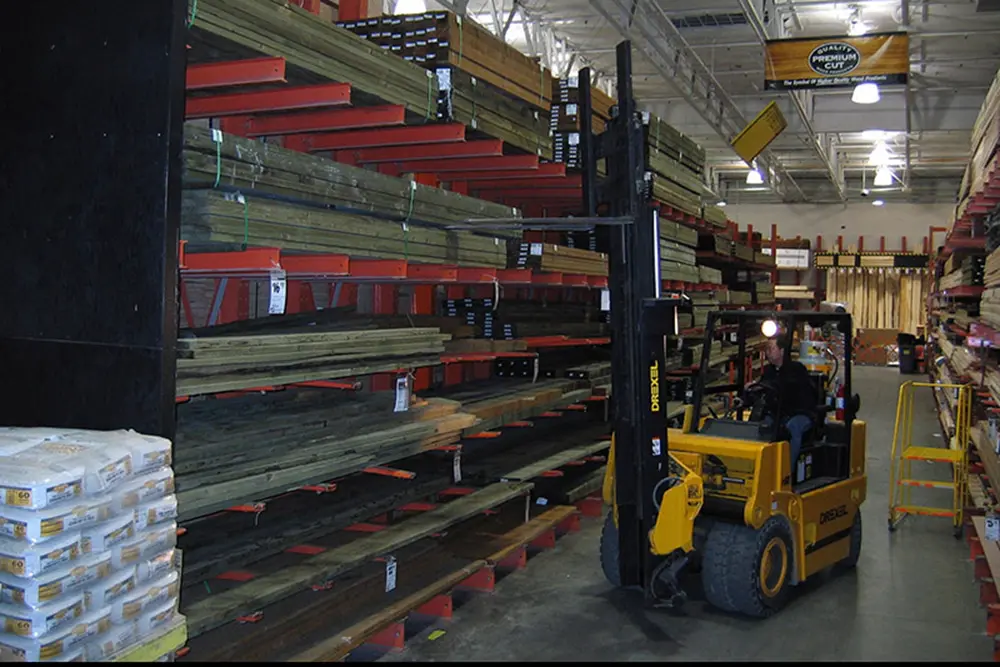

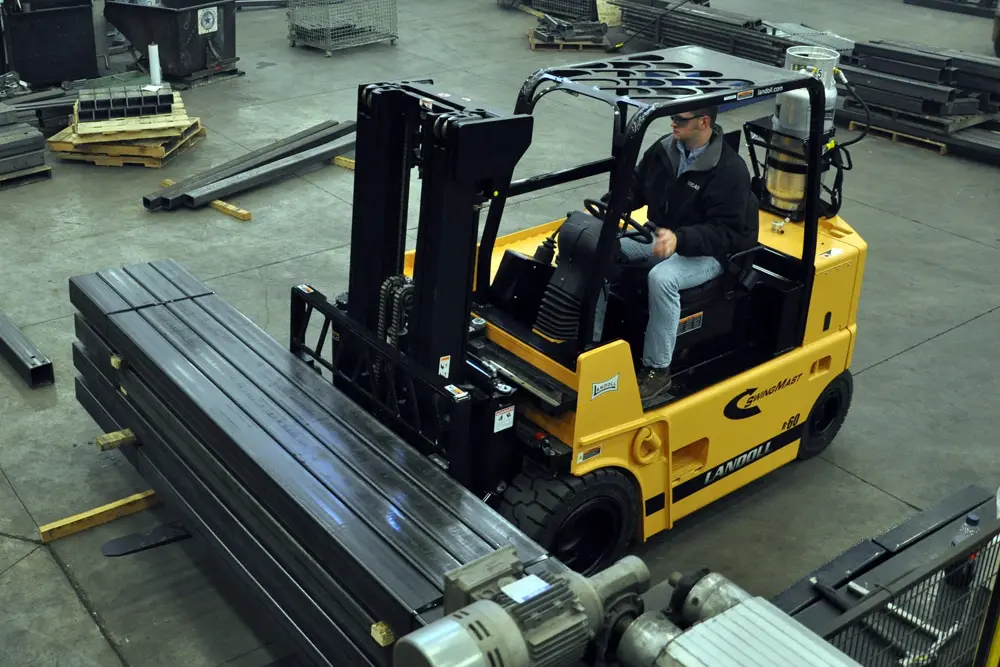

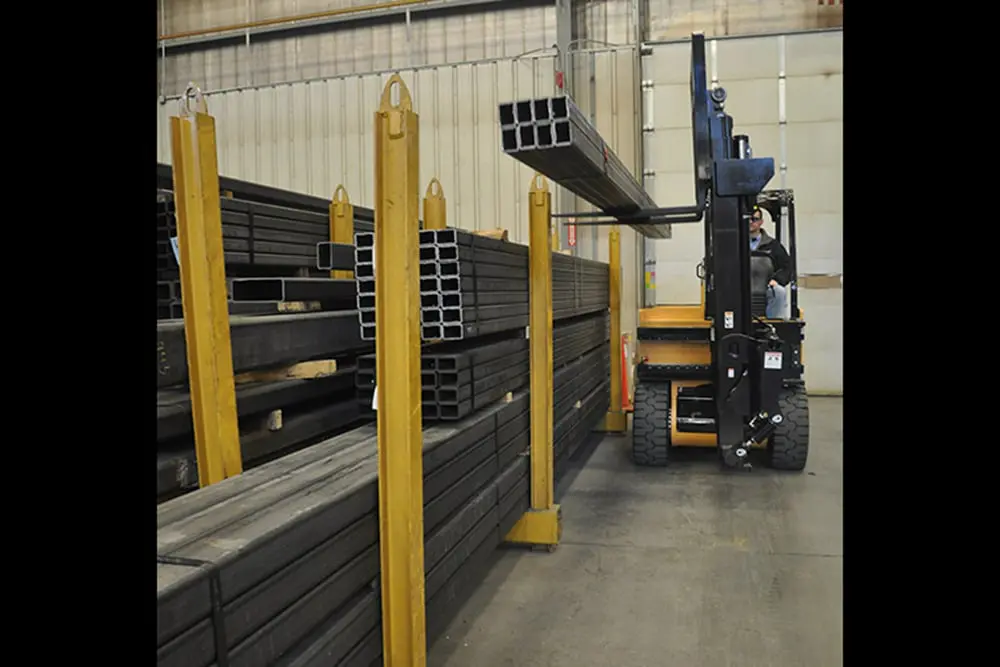

The R60i4 features VNA (Very Narrow Aisle) capability to make it easy to pick and place pallets and long loads in tight spaces.

23 584mm of Shift Includes 2 51mm of Reach
40 1016mm Forks with Standard Bottom Taper and Class III Carriage and Long Load Handling Package
6,000 lbs 2722kg Capacity at 24 600mm Load Center

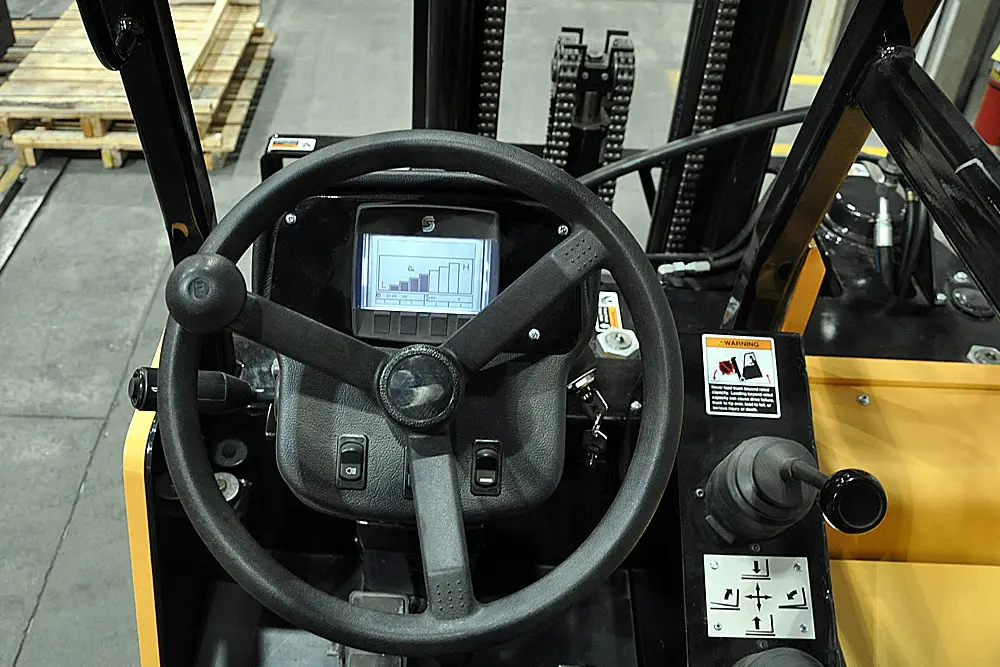

Adjustable Steering Column Key Switch Rear View Mirror Horn and Seatbelt
All Weather Cab With Heater and Windshield Wipers is Optional
Comfortable Seated Operation with Vinyl Suspension Seat
Dash Display Contains Engine Coolant Temperature Gauge Hour Meter Clock Warning Icons and Display Function Buttons
Dual Joystick Hydraulic Control Levers
Four Wheel Design Dual Hydrostatically Driven Front Wheels
Hydrostatic Power Steering with Tilt Steering Wheel
Integrated Computer Controlled Hydrostatic Drive and Efficient Fuel System

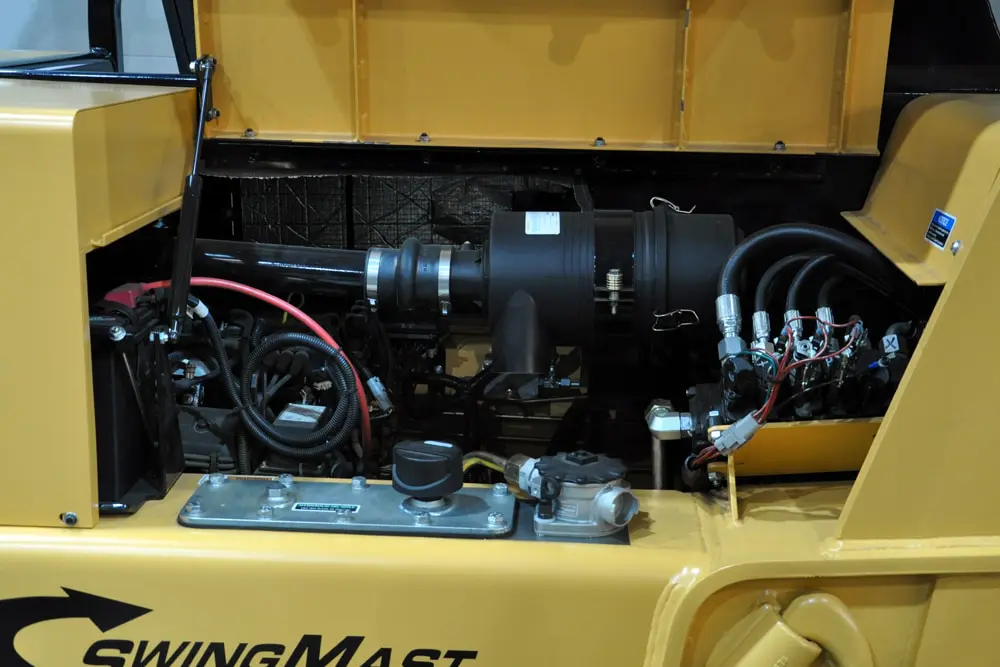

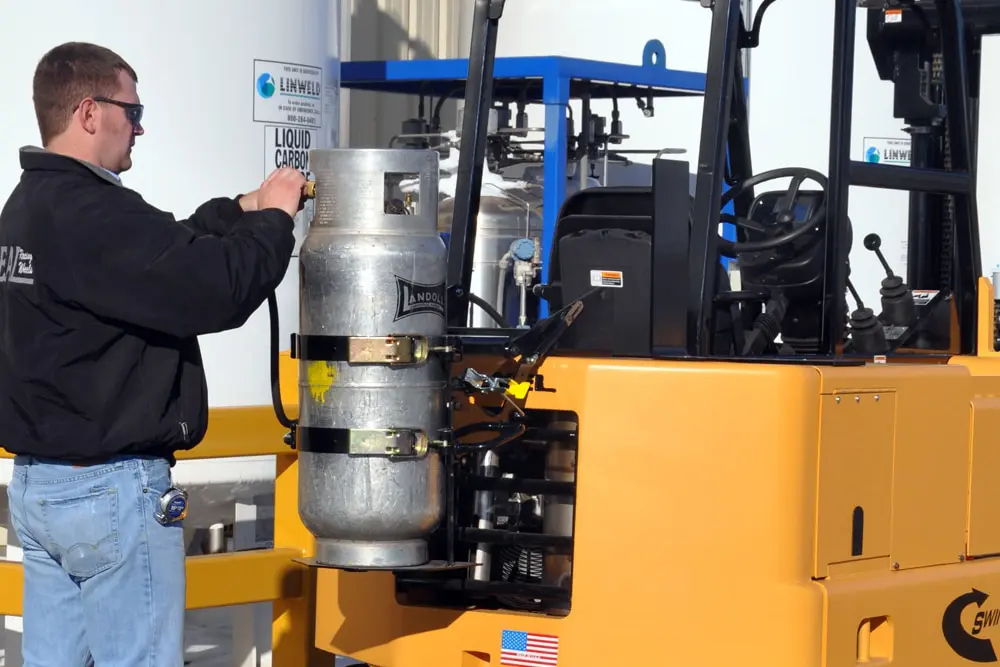

LPG Engine GM 4.3L Tier III and LPG Fuel System Tank Not Included
Neutral Start Anti Restart Operator Presence Seat Switch

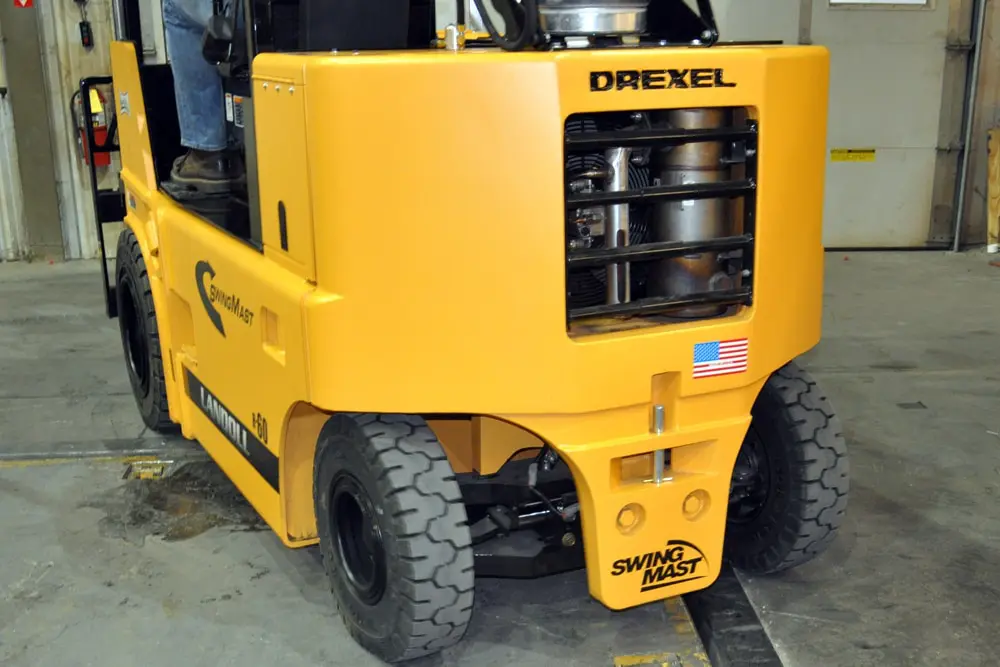

Solid Pneumatic Style Drive and Steer Tires
Capacity (lbs) 6,000
Engine Type LP Gas Engine
Light Height Options Range From 180″ to 240″
Overall Width (in/mm) 54 / 1,370
Overall Length (in/mm) 122 / 3,1000
