Drexel SwingMast® Front Wheel Drive, Rear Wheel Steer VNA and Side Loading Forklift
The Drexel model SL30AC, SL40AC and SL50AC work in aisles as narrow as 56″ (1.4M), have a basic capacity of 3,000 lbs. (1361kg), 4,000 lbs. (1814kg) and up to 5,000 lbs. (2268kg) at 24″ (600mm) load center and have lift heights available to 31′ (9.5M).

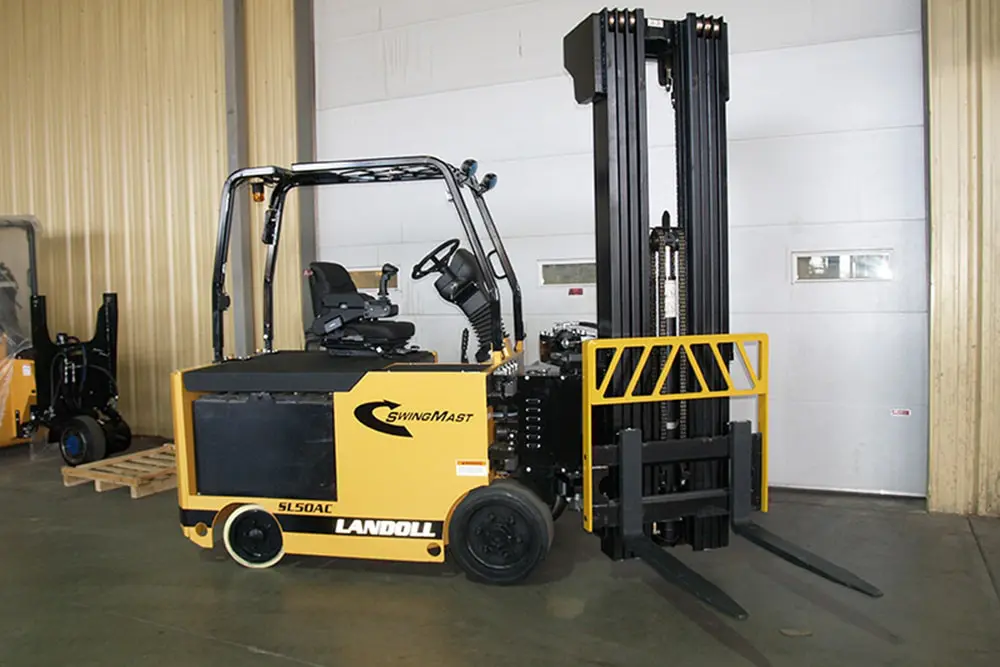

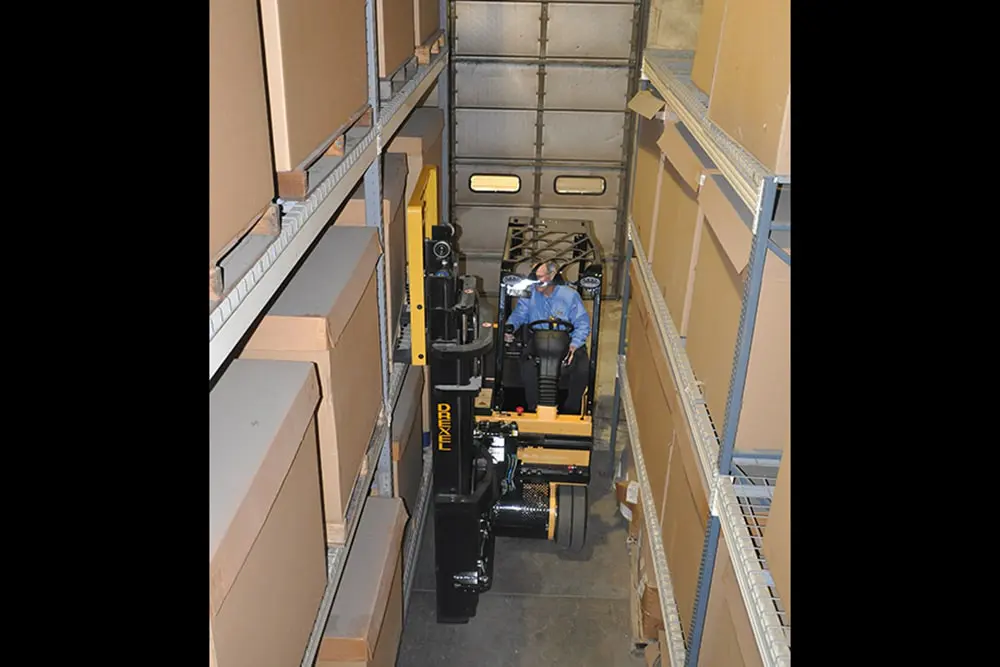

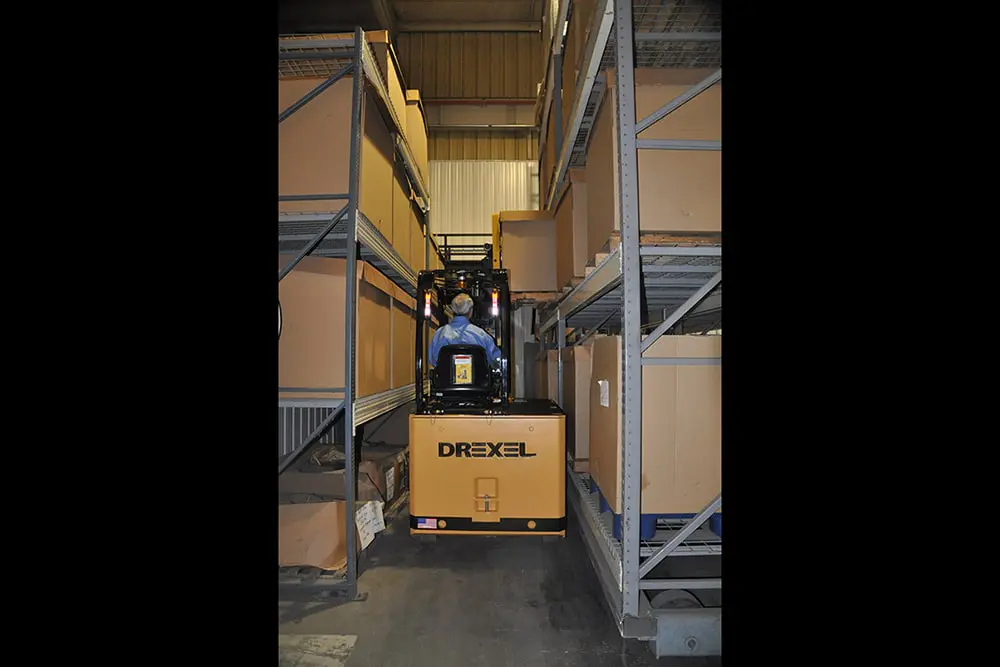

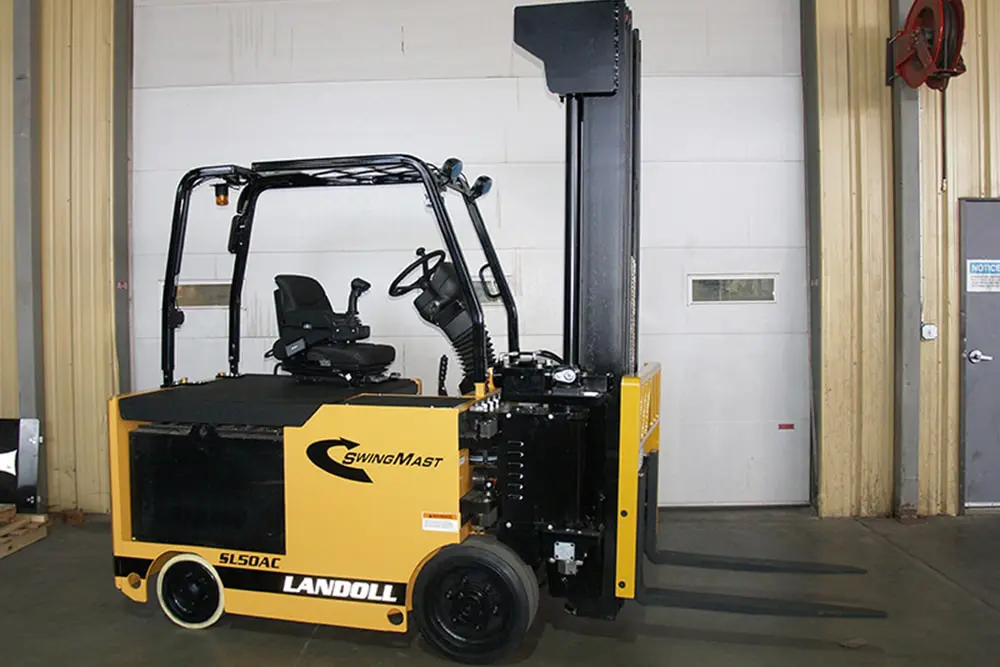

The SL30AC, SL40AC, and SL50AC are 4-Wheel SwingMast® VNA and Side Loading Forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90° and has side shift of 22” (559mm), allowing easy stacking in Very Narrow Aisles. These models can work inside and outside on paved surfaces and can perform the jobs of a normal front loading and side loading forklift including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, cantilever rack, push back rack, double deep and climbing steep ramps. The SL range does the jobs of reach, counterbalanced trucks in aisles over 50% smaller. The ability to store and transport long loads as a side loader increases versatility and maximizes utilization.
Exceptional Performance and Maneuverability
The SL30AC, SL40AC and SL50AC’s fast lift/lower and travel speeds and tight turning radius provide excellent maneuverability and productivity. The optional roll-out battery compartment allows fast battery changes for multi-shift operations. High Visibility three and four stage masts are available for a wide range of applications including those with low overhead obstructions still requiring high lift heights. Wire Guidance is a standard option on these models allowing safe, full-speed travel in the narrowest aisles.
Maximizes Material Handling Productivity

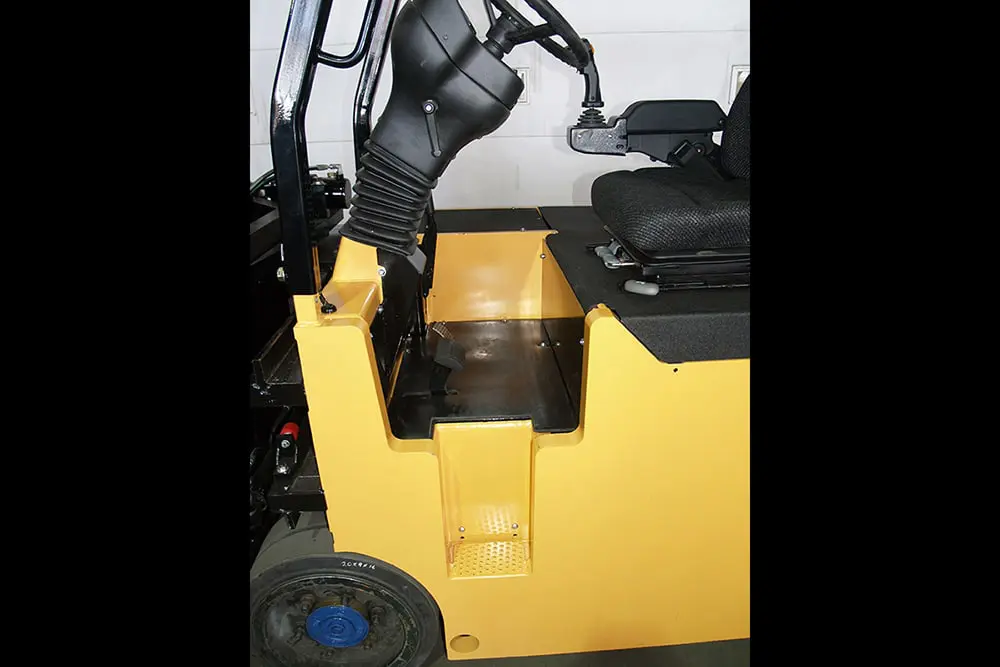

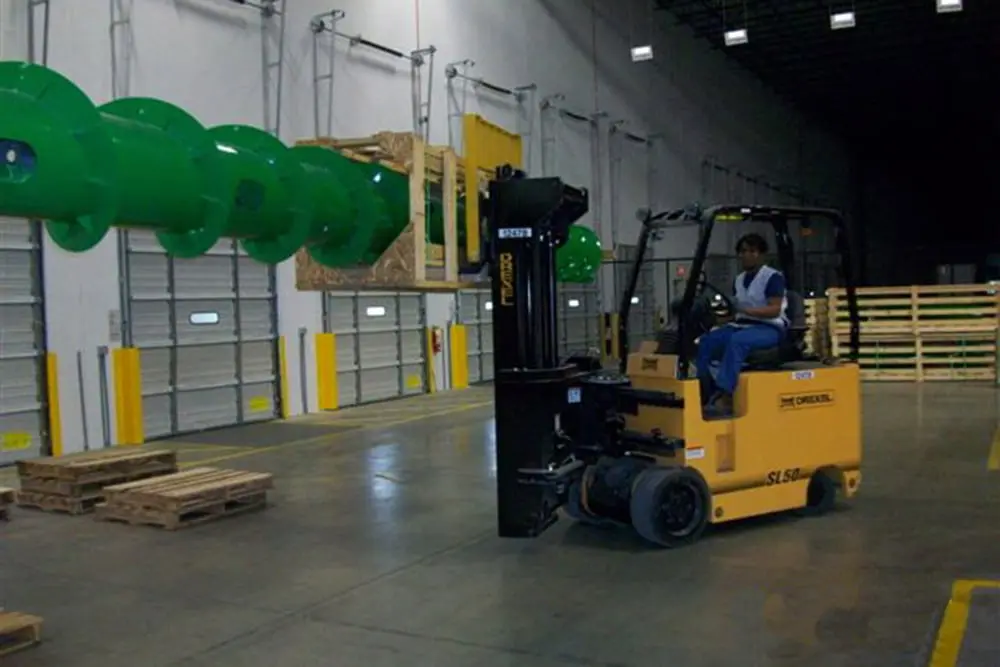

The versatile SL30AC, SL40AC, and SL50AC forklifts replace conventional reach and counterbalanced fork trucks in standard warehouse pallet handling operations. The unique design allows operators to use it as a counterbalance truck indoors or out, operates in very narrow aisles in the warehouse, replacing reach and counterbalanced trucks that require much wider aisles. The operator’s compartment is offset providing a long load-carrying side deck so these trucks can be used as side loaders. The front tires are 20″ (508mm) diameter and the rear/steer tires are 14” (356mm) diameter providing great underclearance for avoiding floor obstructions. The rear steer axle is articulated to provide a smooth ride over rough floor conditions.
|3,000 lb/1361kg, 4,000 lb/1814kg, and 5,000 lb/2268kg Capacity at 24 600mm Load Center|
|48 Volt Electrical System|
|AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency|
|Adjustable Swivel Seat Improves Operator Comfort while Traveling in Reverse|
|Ergonomic Design for Exceptional Operator Comfort and Safety|
|Four Wheel Design Independently Driven Front Drive Wheels and Dual Rear Steering Wheels Provide Excellent Maneuverability and Traction|
|High Efficiency Curtis AC Controllers Provide Trouble Free Operation|
|High Visibility Mast Allows Optimum Safety and View of Loads and Forks|
|Hydrostatic Power Steering Provides Smooth Reliable Long Lasting Steering Control|

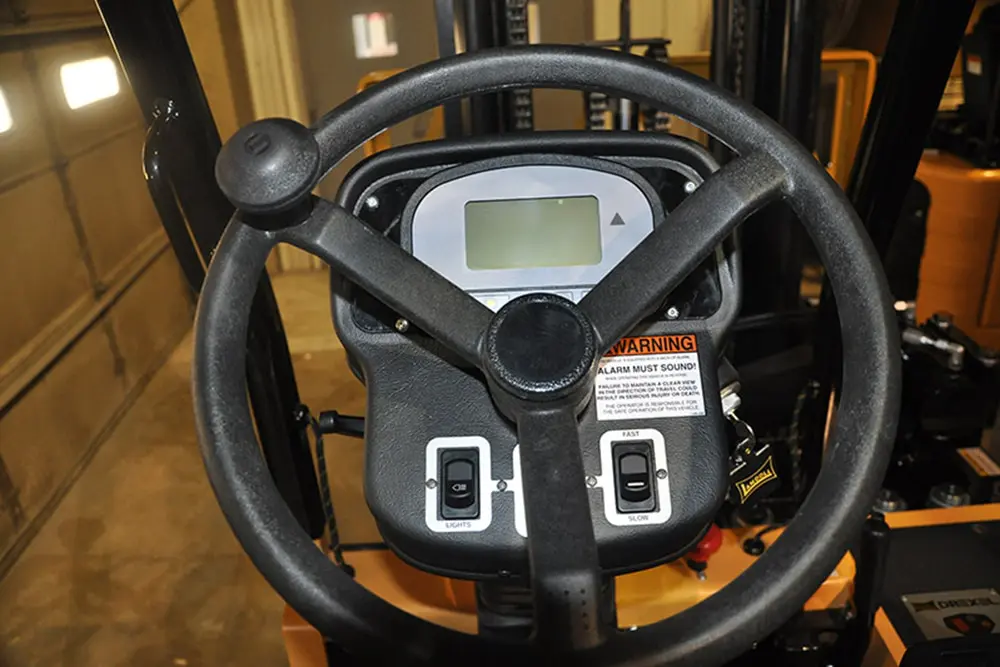

|Interactive LCD Status Monitor BDI with Lift Interrupt Hour Meter with Service Monitor Diagnostic Code Display Input Device Calibration|
|Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times|
|Optional Cold Storage Conditioned to 22 F 30 C|

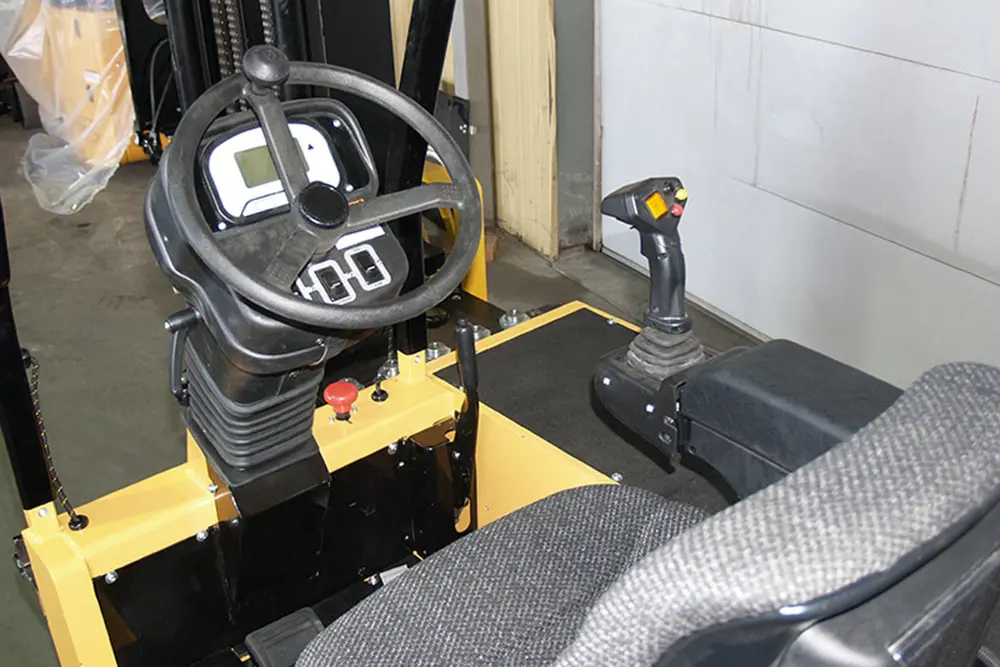

|Single Joystick Controls Hydraulic Functions Directional Control Horn and Wire Guidance|
|Capacity (lbs/kg)||3,000 / 1,361||4,000 / 1,814||5,000 / 2,268|
|Light Height||Options Range From 188″ to 315″||Options Range From 188″ to 315″||Options Range From 188″ to 315″|
|Overall Width (in/cm)||Available Upon Request||–||–|
|Overall Length (in/cm)||95.25 / 2,419||95.25 / 2,419||96.25 / 2,445|
